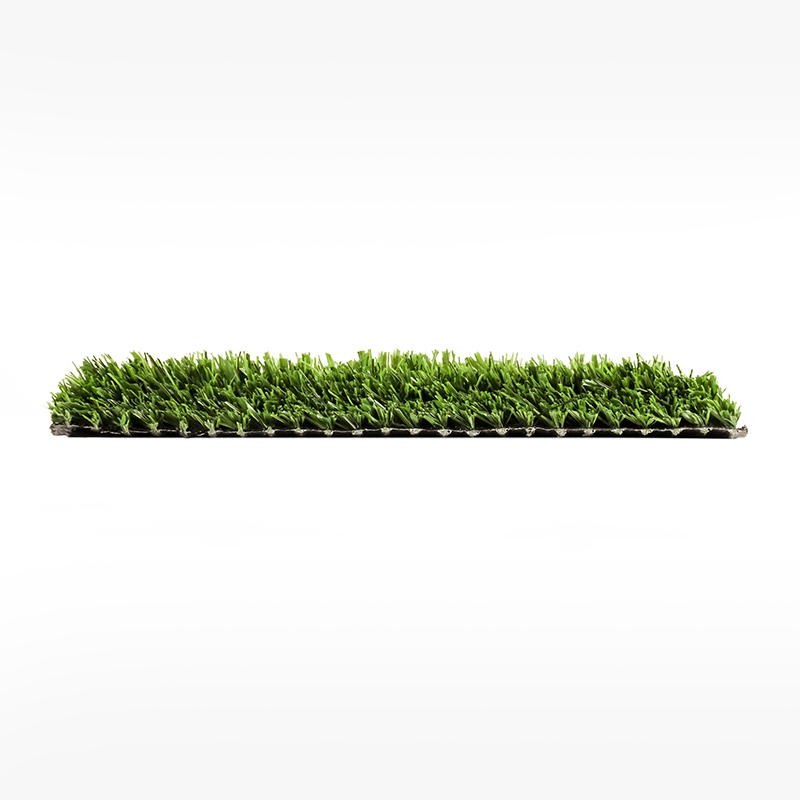

Eco 59 Silver Hybrid

THE ULTIMATE HYBRID SPORTS TURF

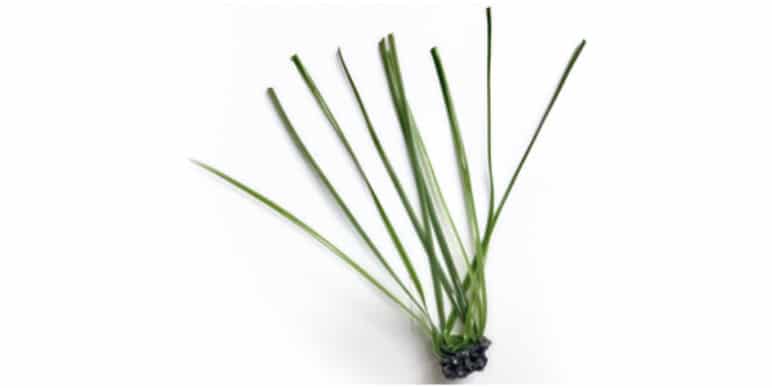

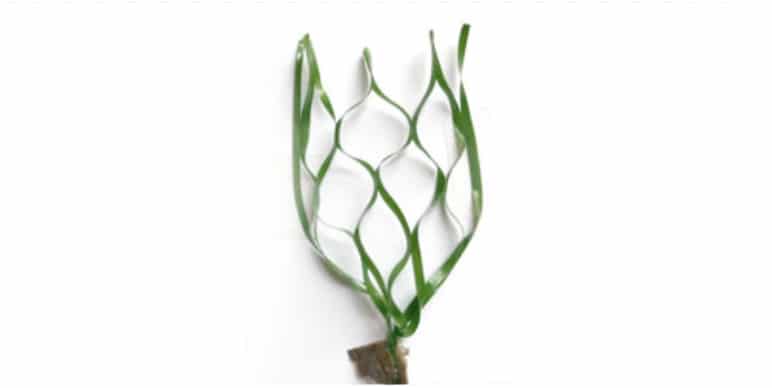

Eco 59 Silver Hybrid is a leading product in the sports market with its designed aesthetics and performance traits. Equipped with a mono-filament yarn giving the turf a lush look, mixed with a slit-filament yarn which creates a strong blade pull while blocking infill migration keeping maintenance at an all-time low. The yarn density of Hybrid 59 keeps the infill cost down due the natural cushion of the yarn. Eco 59 Silver Hybrid is your ideal product for a playing field or commercial use.

Product Information

Approximate Total Weight: 91.1 oz.

Approximate Pile Height: 2.0 in.

Backing: Polyurethane

Fiber: Monofilament – V & Filibrated

Infill: 2 Pounds Sand / 2 Pounds Rubber

Warranty: 8 Years

Roll Size: 15 ft. x 183 ft.

Blade Type: Slit & V

Product Testing
Test Method Description Result
ASTM D5848 Total Product Weight 91.10 oz/yd²
ASTM D5848 Pile Yarn Weight 60.41 oz/yd²
ASTM D5848 Primary Backing Weight 8.01 oz/yd²
ASTM D5848 Secondary Backing Weight 22.68 oz/yd²
ASTM D5793 Stitch Count & Gauge 3.66 Stiches per inch | 1/2” Gauge
ASTM D1335 Average Tuft Bind Strength 13.5 lbs/force
ASTM D5034 Average Grab Tear-Length, MD 278 lbs/force
ASTM D5034 Average Grab Tear-Width, CMD 258 lbs/force
ASTM D2859 Pill Flammability 8 out of 8 Pass: Meets 16CFR 1630
ASTM F355-16e Gmax Gmax 138 / HIC 433
EN 12616 Permeability, Infiltrometer 57.0 inches / hr
ASTM D3218 Average Yarn Filament Thickness Mono 309 microns | 101 microns
ASTM D2256 Avg. Yarn Breaking Strength, Elongation Mono 21.4 lbs / force | Slit 14.9 lbs / force
ASTM D1907 Yarn Denier Mono 10950 | Slit 4789

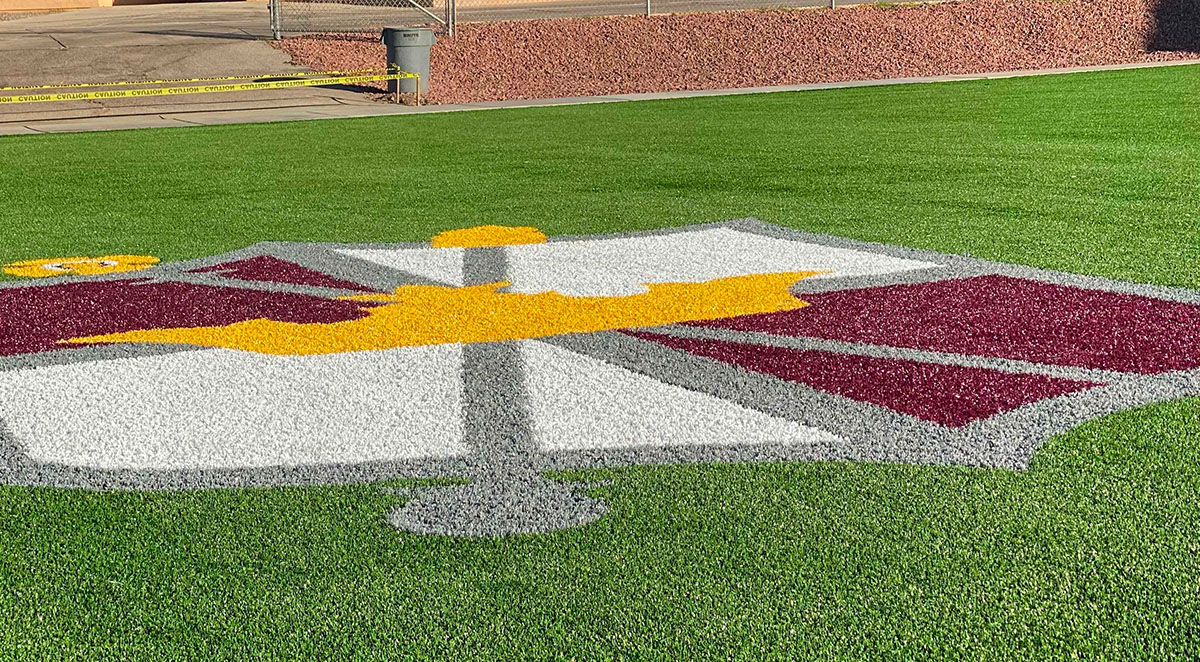

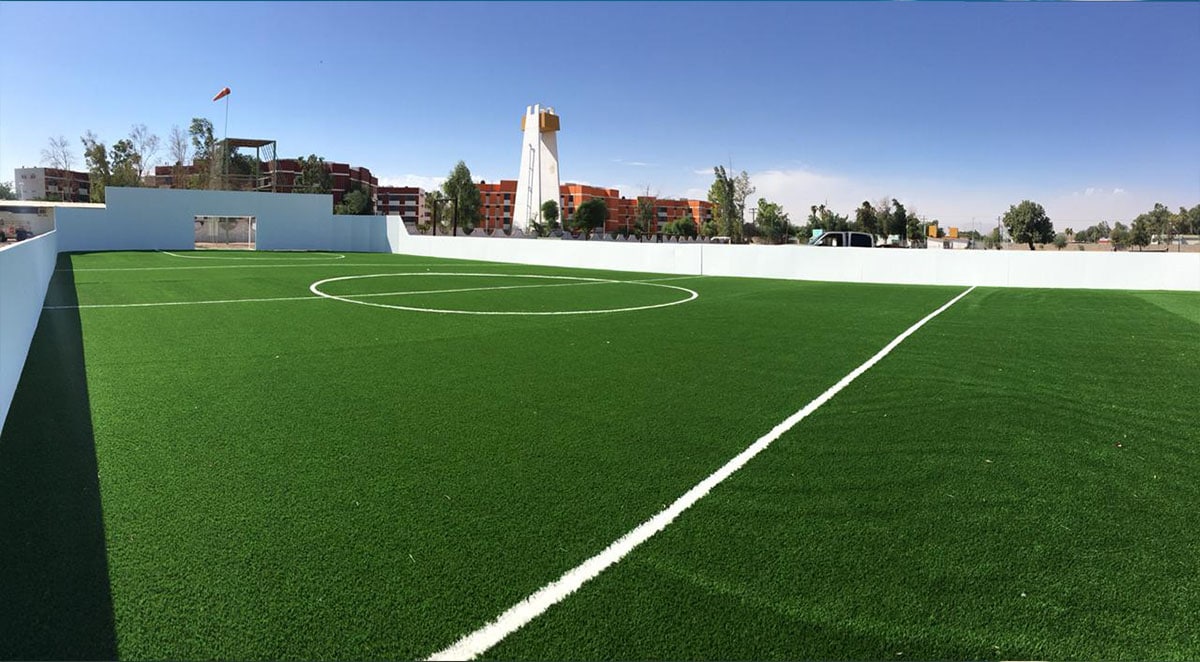

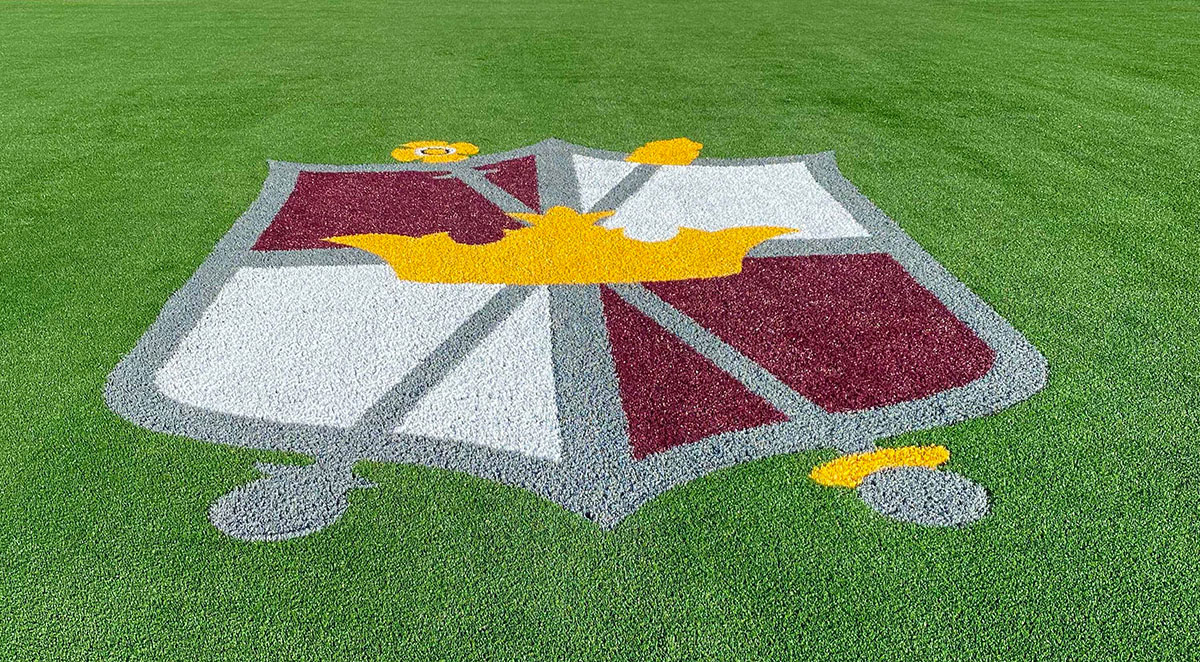

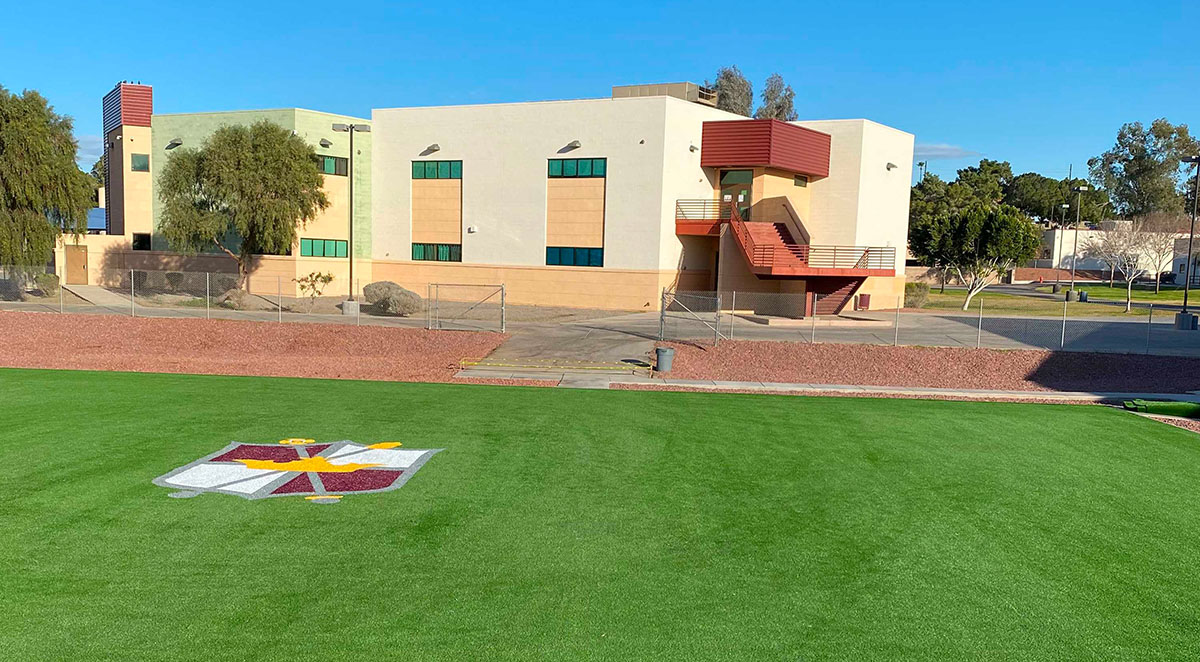

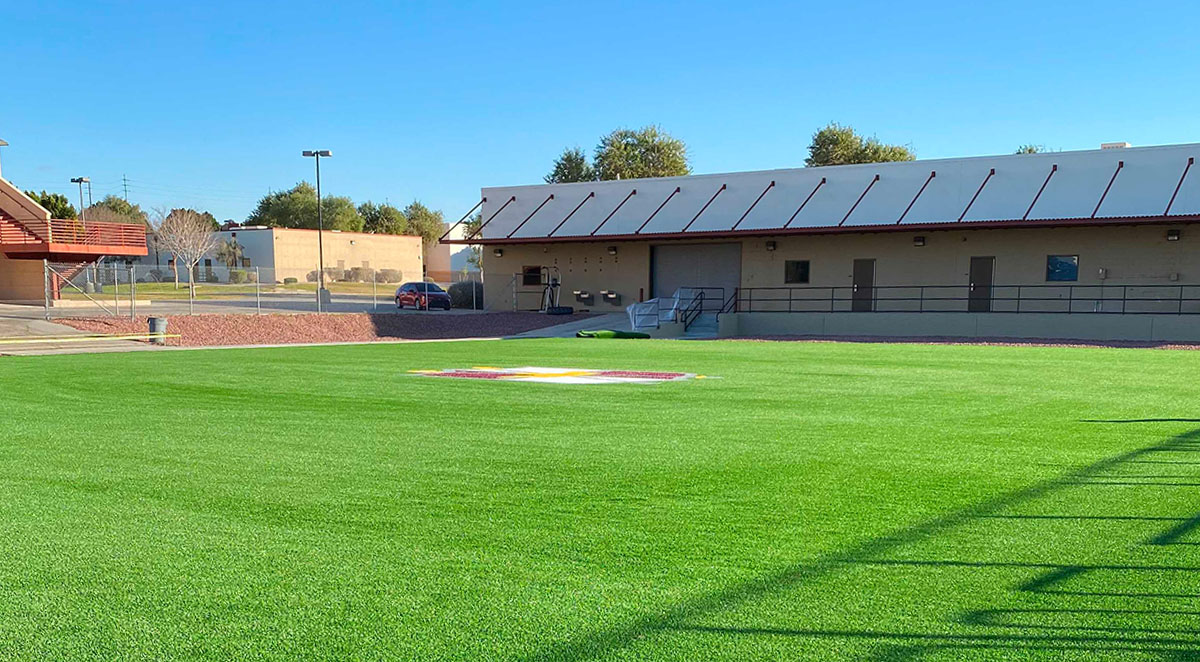

Product Installation Photos
